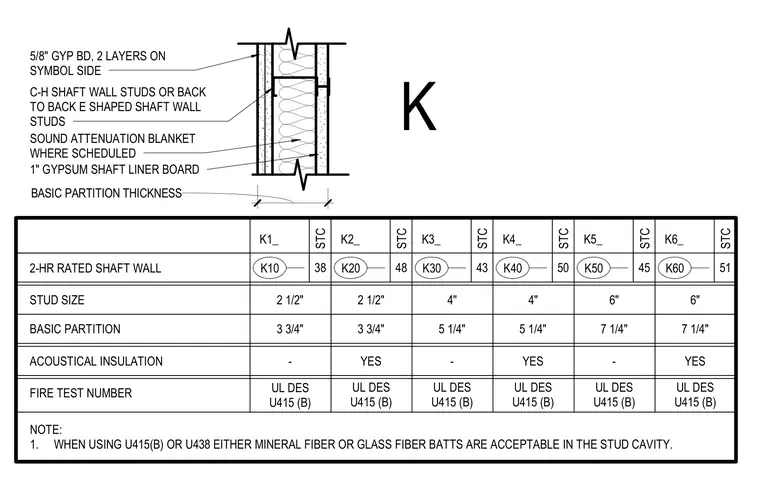

This two-hour rated shaft wall detail features C-H shaft wall studs or back-to-back E-shaped shaft wall studs receiving two layers of five-eighths-inch gypsum board on the symbol side and one-inch gypsum shaft liner board on the reverse. A sound attenuation blanket is installed in the stud cavity where scheduled per the partition schedule. The assembly accommodates varying stud sizes of two-and-a-half inches, four inches, and six inches, yielding basic partition thicknesses from three-and-three-quarters to seven-and-a-quarter inches with sound transmission class ratings from 38 to 51 under UL Design U415 (B). Mineral fiber or glass fiber batts are acceptable in the stud cavity for designs U415 (B) and U438.
5/8" GYP BD, 2 LAYERS ON SYMBOL SIDE C-H SHAFT WALL STUDS OR BACK TO BACK E SHAPED SHAFT WALL STUDS K 2-HR RATED SHAFT WALL STUD SIZE BASIC PARTITION ACOUSTICAL INSULATION FIRE TEST NUMBER NOTE: 1. WHEN USING U415(B) OR U438 EITHER MINERAL FIBER OR GLASS FIBER BATTS ARE ACCEPTABLE IN THE STUD CAVITY. K1_ STC 48 2 1/2" 3 3/4" - UL DES U415 (B) 2 1/2" 3 3/4" YES UL DES U415 (B) K2_ STC 43 4" 5 1/4" - UL DES U415 (B) K3_ STC 50 4" 5 1/4" UL DES U415 (B) K4_ STC 45 6" 7 1/4" - UL DES U415 (B) K5_ STC 51 6" 7 1/4" K6_ STC UL DES U415 (B) 38 1" GYPSUM SHAFT LINER BOARD BASIC PARTITION THICKNESS YES YES SOUND ATTENUATION BLANKET WHERE SCHEDULED K10 K20 K30 K40 K50 K60
