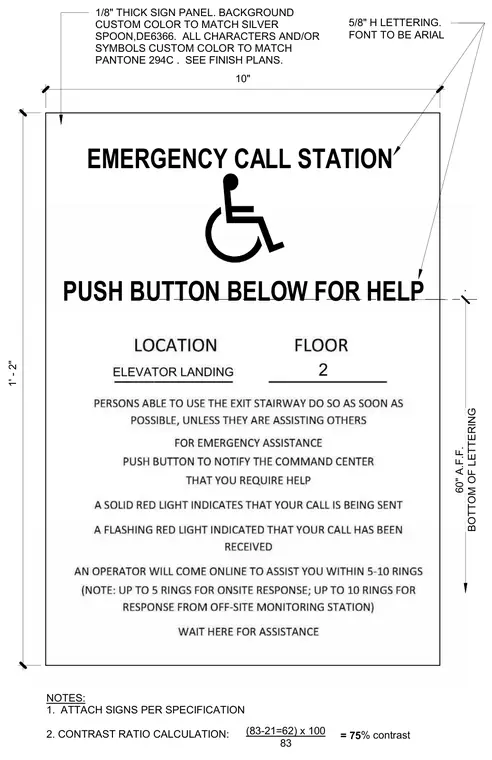

An emergency call station sign features a one-eighth-inch thick sign panel with a custom silver spoon background and Pantone 294C characters and symbols. The sign utilizes Arial font with five-eighth-inch high lettering and includes an international symbol of accessibility. The bottom of the lettering is positioned at sixty inches above the finished floor. The sign dimensions are ten inches wide by one foot two inches high and include instructions for emergency assistance.
NOTES: 1. ATTACH SIGNS PER SPECIFICATION 2. CONTRAST RATIO CALCULATION: 1/8" THICK SIGN PANEL. BACKGROUND CUSTOM COLOR TO MATCH SILVER SPOON,DE6366. ALL CHARACTERS AND/OR SYMBOLS CUSTOM COLOR TO MATCH PANTONE 294C . SEE FINISH PLANS. 1' - 2" EMERGENCY CALL STATION PUSH BUTTON BELOW FOR HELP 10" . 60" A.F.F. BOTTOM OF LETTERING 5/8" H LETTERING. FONT TO BE ARIAL (83-21=62) x 100 83 = 75 % contrast
