Architectural · A-KW4SS

Metal Gate Jamb at CMU Wall

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Columns Walls Doors Roofs Bracing

Connections

Welded Connection

About this detail

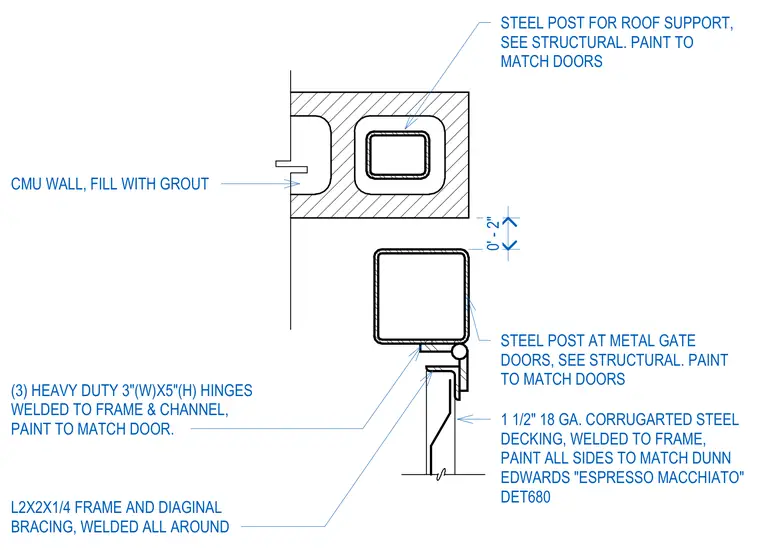

A structural steel post supports the roof overhead while embedded within a fully grouted concrete masonry unit wall. A separate steel post for the metal gate door stands adjacent with a two-inch clearance gap. Three heavy-duty three-by-five-inch hinges are welded to the door frame and structural channel, all painted to match the door finish. The gate leaf consists of an L2x2x1/4 angle frame and diagonal bracing welded all around, clad with one and a half inch eighteen gauge corrugated steel decking welded to the frame.
