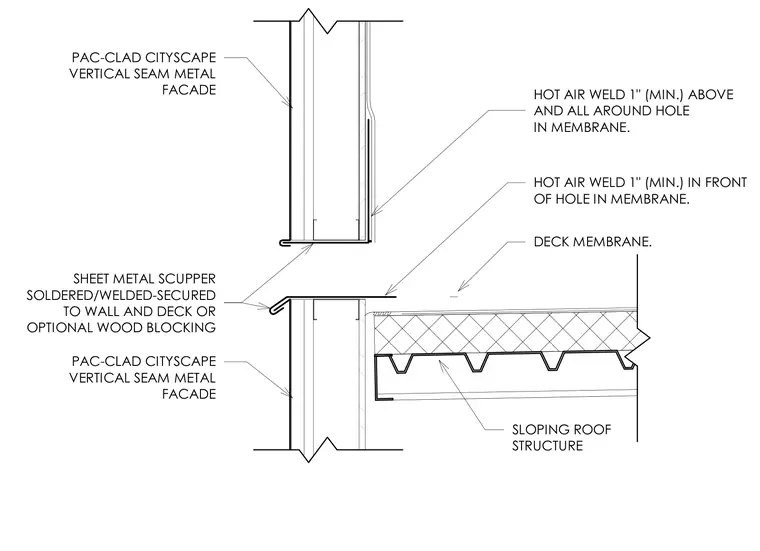

A sheet metal scupper is secured and soldered or welded to the wall and deck or optional wood blocking at the roof edge. The assembly features a sloping roof structure with a deck membrane hot air welded a minimum of one inch above, around, and in front of the membrane opening. The exterior facade is clad with PAC-CLAD Cityscape vertical seam metal panels.
HOT AIR WELD 1" (MIN.) ABOVE AND ALL AROUND HOLE IN MEMBRANE. SHEET METAL SCUPPER SOLDERED/WELDED-SECURED TO WALL AND DECK OR OPTIONAL WOOD BLOCKING HOT AIR WELD 1" (MIN.) IN FRONT OF HOLE IN MEMBRANE. DECK MEMBRANE. PAC-CLAD CITYSCAPE VERTICAL SEAM METAL FACADE SLOPING ROOF STRUCTURE PAC-CLAD CITYSCAPE VERTICAL SEAM METAL FACADE
