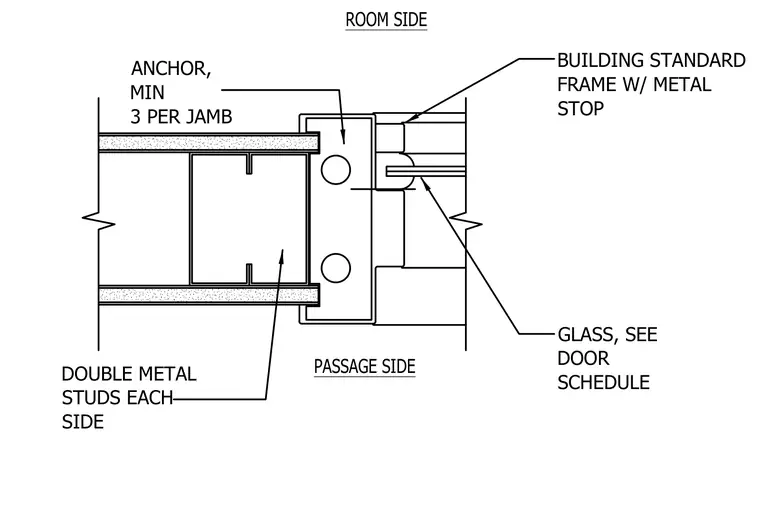

The frame consists of a building standard metal frame with a metal stop, secured to double metal studs on each side with a minimum of three anchors per jamb. Glass thickness and type are sized per the door schedule. The assembly separates the passage side from the room side.
PASSAGE SIDE ROOM SIDE ANCHOR, MIN 3 PER JAMB GLASS, SEE DOOR SCHEDULE DOUBLE METAL STUDS EACH SIDE BUILDING STANDARD FRAME W/ METAL STOP
