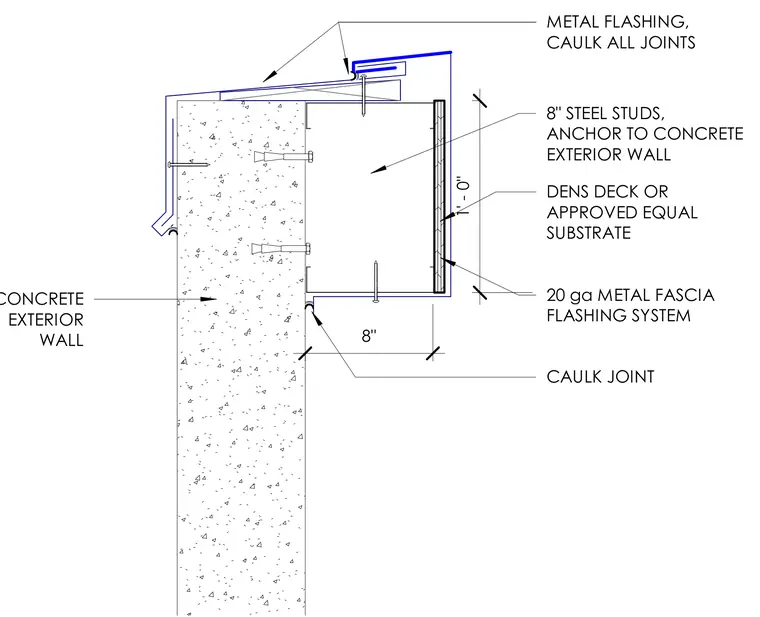

A twenty-gauge metal fascia flashing system wraps the exterior assembly, featuring a metal cap flashing with caulked joints at all junctions. Eight-inch steel studs are anchored directly to the concrete exterior wall. A dens deck or approved equal substrate backs the metal fascia system, and caulking is applied at the lower joint.
8" 1' - 0" 8" STEEL STUDS, ANCHOR TO CONCRETE EXTERIOR WALL METAL FLASHING, CAULK ALL JOINTS DENS DECK OR APPROVED EQUAL SUBSTRATE 20 ga METAL FASCIA FLASHING SYSTEM CAULK JOINT CONCRETE EXTERIOR WALL
