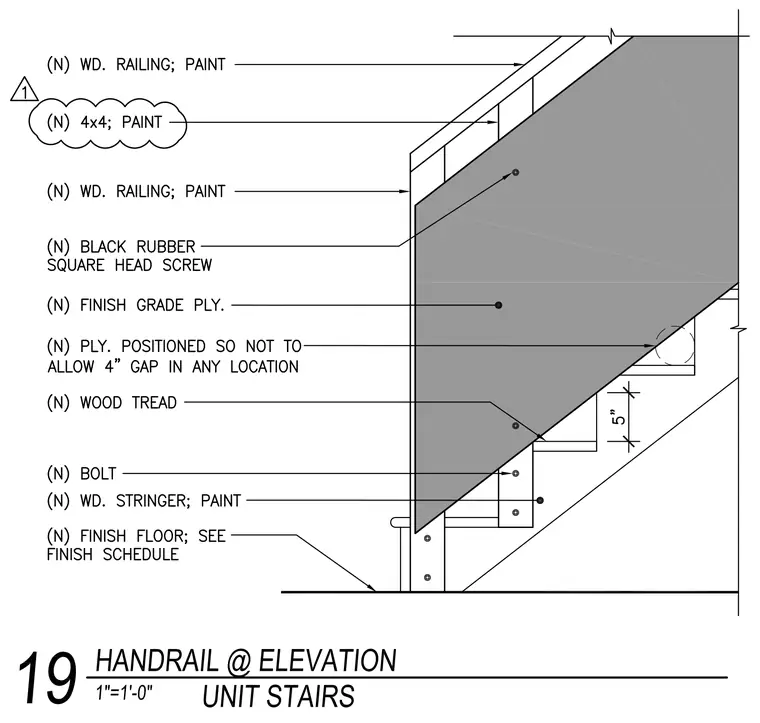

This new stair guardrail assembly consists of a wood railing and 4x4 posts finished with paint, anchored adjacent to wood stair treads and stringers. A finish grade plywood panel serves as the guard infill, secured with black rubber square head screws and bolts. The plywood is positioned to maintain a maximum four-inch gap in any location to meet safety requirements. The assembly terminates at the finish floor, which is specified in the finish schedule.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
