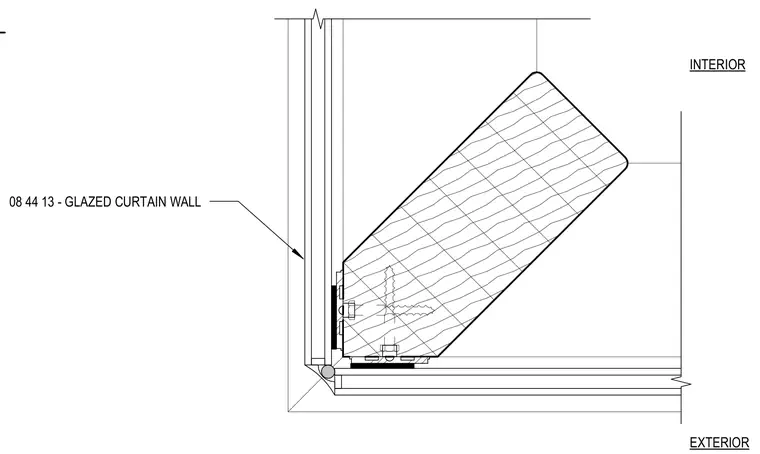

This plan detail shows a glazed curtain wall corner mullion assembly meeting an interior structural or blocking member. The extruded aluminum mullion profiles align at the building exterior to form the 90-degree corner joint. Gasket seals and internal fasteners secure the framing components. The interior backing element is fastened with countersunk screws.
