A standing seam roof clamp connects ancillary rooftop equipment or structural framing to standing seam roof panels without penetrating the weather barrier. The assembly uses two three-eighths-inch round-point setscrews to grip the panel seam and an M8 attachment bolt for secondary connection. The basis of design is manufacturer S-5!, model S-5-H90, verified for compatibility with the selected insulated metal roof panels.

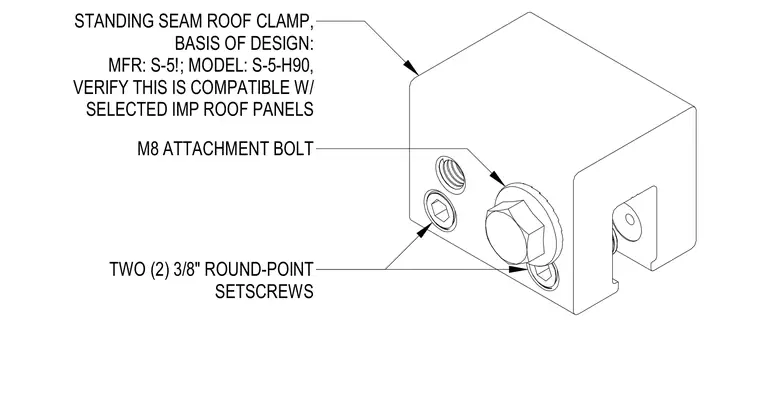

STANDING SEAM ROOF CLAMP, BASIS OF DESIGN: MFR: S-5!; MODEL: S-5-H90, VERIFY THIS IS COMPATIBLE W/ SELECTED IMP ROOF PANELS TWO (2) 3/8" ROUND-POINT SETSCREWS M8 ATTACHMENT BOLT
