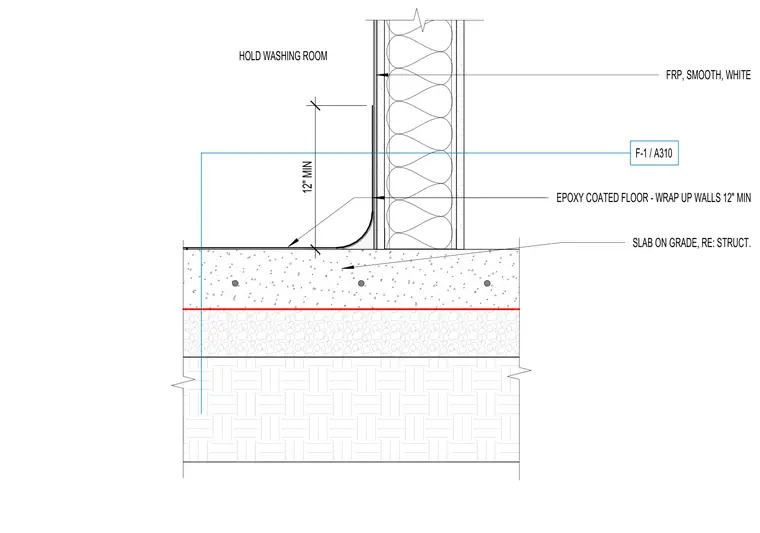

A twelve-inch minimum concrete slab on grade supports a framed wall lined with smooth white fiber-reinforced plastic panels. An epoxy-coated floor finish extends across the concrete slab and wraps upward onto the base of the wall for a minimum height of twelve inches.
12" MIN SLAB ON GRADE, RE: STRUCT. EPOXY COATED FLOOR - WRAP UP WALLS 12" MIN F-1 / A310 HOLD WASHING ROOM FRP, SMOOTH, WHITE
