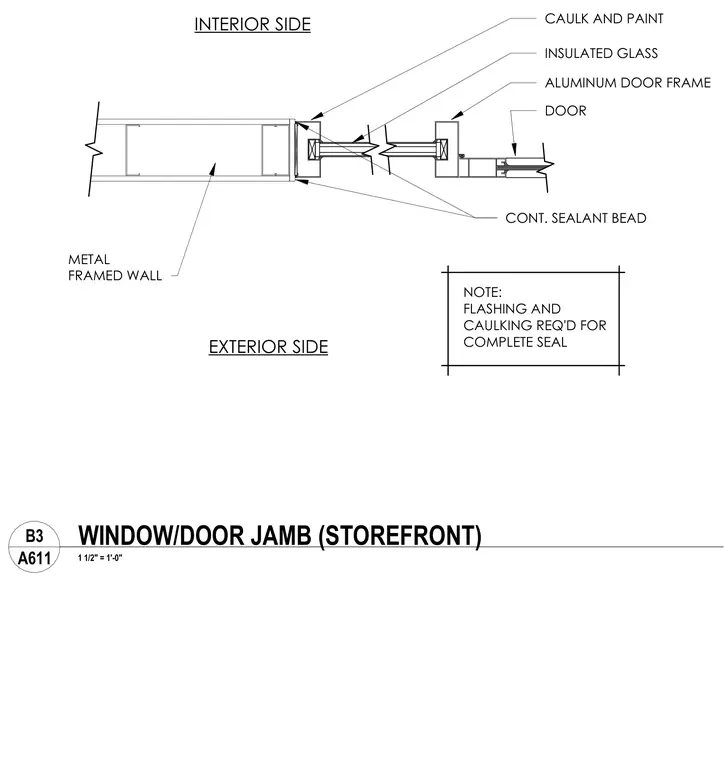

An aluminum door frame connects to a metal framed wall with continuous sealant beads at the interior and exterior joints. The aluminum frame secures an insulated glass unit and a door panel. Flashing and caulking are required for a complete weather-resistant seal. A caulk and paint finish completes the interior transition to the wall assembly.
NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL DOOR INSULATED GLASS INTERIOR SIDE EXTERIOR SIDE ALUMINUM DOOR FRAME CAULK AND PAINT CONT. SEALANT BEAD METAL FRAMED WALL 1 1/2" = 1'-0" A611 B3 WINDOW/DOOR JAMB (STOREFRONT)
