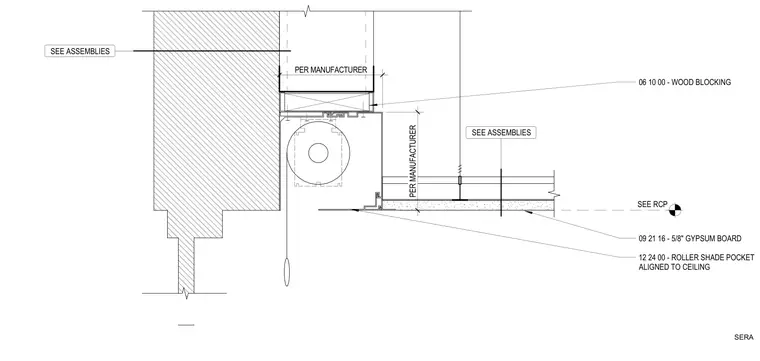

A roller shade pocket is mounted adjacent to a vertical wall assembly and aligned with the ceiling line. Wood blocking provides structural backing for the shade pocket housing. A five-eighths-inch gypsum board ceiling terminates at the pocket trim, coordinated with reflected ceiling plans and manufacturer specifications.
ALIGNED TO CEILING PER MANUFACTURER PER MANUFACTURER SEE ASSEMBLIES SEE RCP SEE ASSEMBLIES 06 10 00 - WOOD BLOCKING 12 24 00 - ROLLER SHADE POCKET SERA 09 21 16 - 5/8" GYPSUM BOARD
