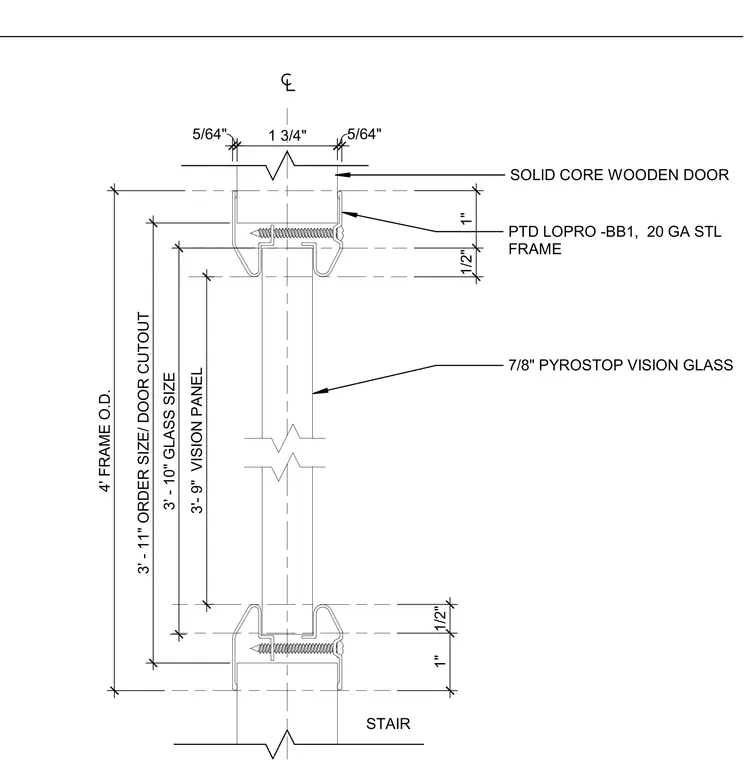

A solid core wooden door houses a seven-eighths-inch Pyrostop vision glass panel retained by a painted low-profile twenty gauge steel frame. The assembly features a one-and-three-quarter-inch door thickness with specific dimensional clearances for the glass size, door cutout, and overall frame outside diameter. Fasteners secure the steel frame profile directly to the wood door core on both faces.
SOLID CORE WOODEN DOOR 7/8" PYROSTOP VISION GLASS 1 3/4" 5/64" 5/64" PTD LOPRO -BB1, 20 GA STL FRAME 1/2" 1" STAIR 3'- 9" VISION PANEL 3' - 10" GLASS SIZE 3' - 11" ORDER SIZE/ DOOR CUTOUT 4' FRAME O.D. 1" 1/2"
