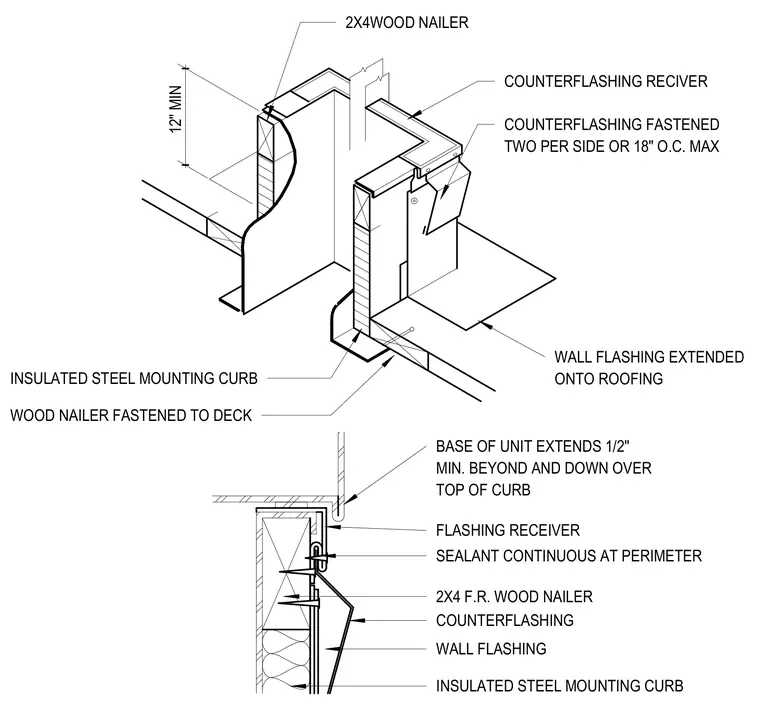

An insulated steel mounting curb sits atop the roof deck secured by wood nailers. A fire-retardant two-by-four wood nailer is anchored around the perimeter, providing a twelve-inch minimum height above the roof surface. Wall flashing extends onto the roofing membrane and is secured by a counterflashing receiver. Counterflashing is fastened at two locations per side or at a maximum spacing of eighteen inches on center. A continuous bead of sealant runs along the perimeter, and the base of the unit extends one-half inch minimum beyond and down over the top of the curb.
12" MIN 2X4WOOD NAILER COUNTERFLASHING RECIVER COUNTERFLASHING FASTENED TWO PER SIDE OR 18" O.C. MAX WALL FLASHING EXTENDED ONTO ROOFING INSULATED STEEL MOUNTING CURB WOOD NAILER FASTENED TO DECK BASE OF UNIT EXTENDS 1/2" MIN. BEYOND AND DOWN OVER TOP OF CURB FLASHING RECEIVER SEALANT CONTINUOUS AT PERIMETER 2X4 F.R. WOOD NAILER COUNTERFLASHING WALL FLASHING INSULATED STEEL MOUNTING CURB
