Architectural · A-KSTG6

1 Hr Unit Demising Wall

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Partitions Bracing Insulation

Connections

Bracing Connection

About this detail

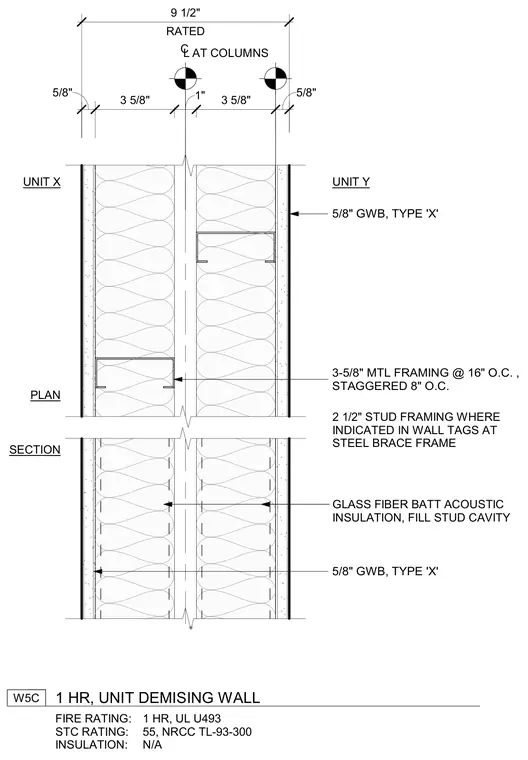

This one-hour rated unit demising wall assembly consists of 3-5/8 inch metal framing spaced at 16 inches on center, staggered at 8 inches on center, with a total nominal thickness of 9-1/2 inches. Each side is finished with 5/8 inch Type X gypsum wallboard. The stud cavities are completely filled with glass fiber batt acoustic insulation. At structural steel brace frames and columns, 2-1/2 inch stud framing is utilized as indicated in the wall tags.
