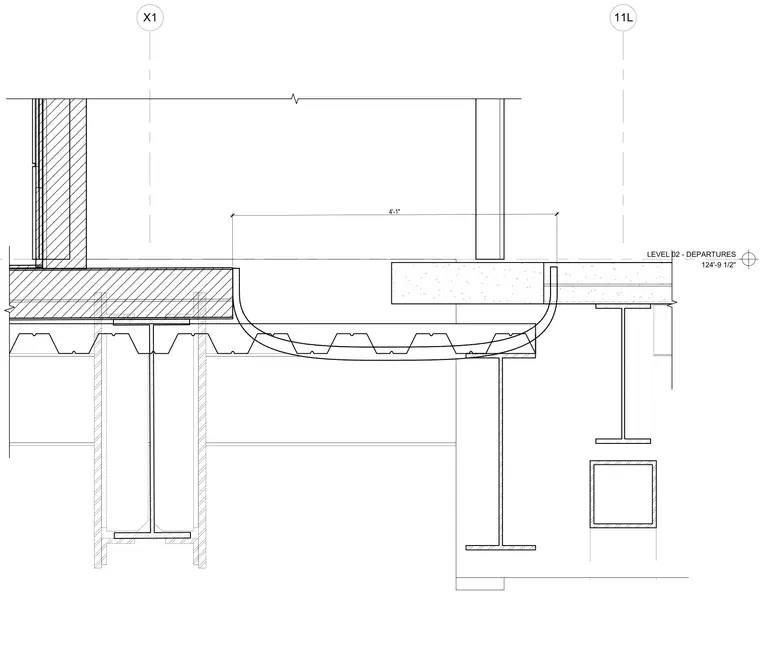

An architectural floor expansion joint detail bridging between adjacent floor assemblies at Level 02. The assembly spans a four-foot-one-inch gap between structural steel framing lines designated as grid X1 and grid 11L. A flexible trough spans beneath the joint opening to collect and drain any water infiltration between the structural bays.
