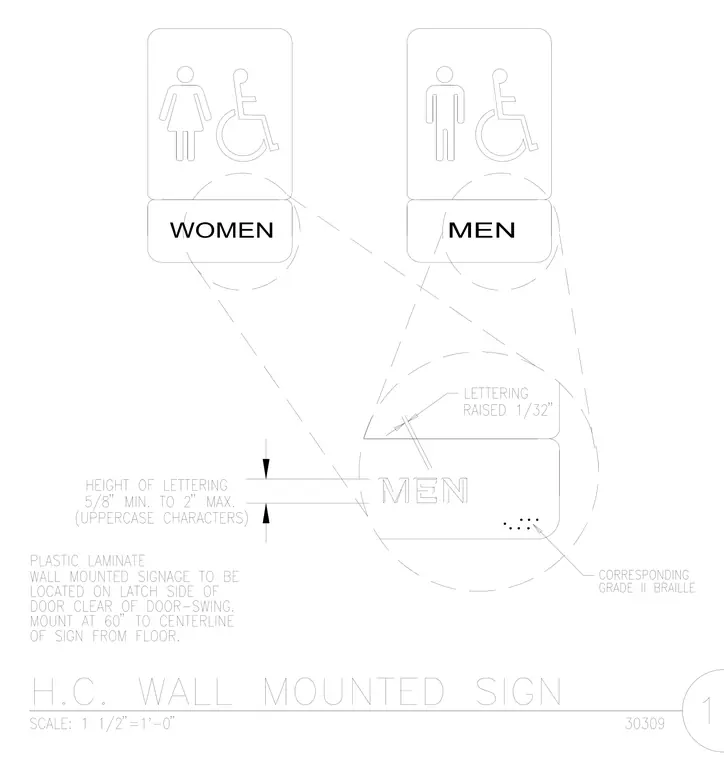

Plastic laminate wall mounted signage is located on the latch side of the door clear of the door swing, and mounted at 60 inches to the centerline of the sign from the floor. Uppercase character lettering has a height of 5/8 inch minimum to 2 inches maximum, raised 1/32 inch, accompanied by corresponding Grade II braille and international accessibility symbols.
