A plastic laminate countertop features a rolled edge and a four-inch backsplash, supported by two-by-four wood counter framing anchored securely through the wall into blocking at two feet on center. A two-inch by one-half-inch stainless steel bar is bent and welded to form the counter support, anchored securely to backing and spaced at a maximum of four feet on center. Two-by-eight wood blocking is installed at each support location to distribute loads into the wall construction, establishing a finished counter height of two feet ten inches.

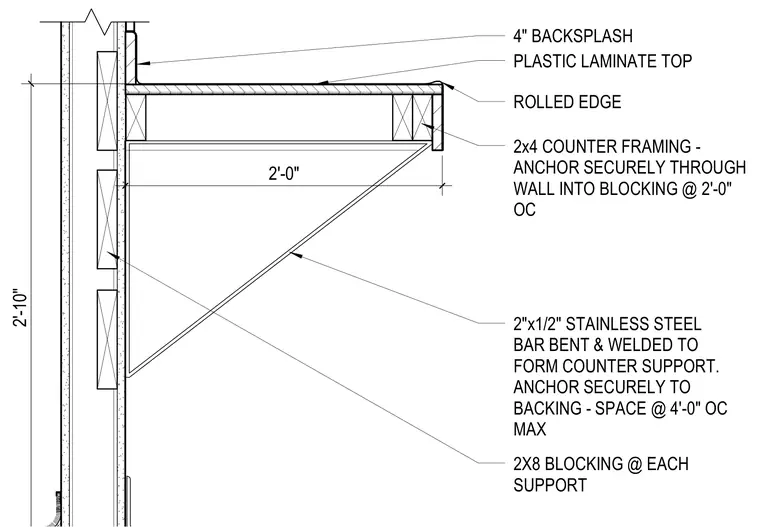

2'-0" 4" BACKSPLASH PLASTIC LAMINATE TOP ROLLED EDGE 2x4 COUNTER FRAMING - ANCHOR SECURELY THROUGH WALL INTO BLOCKING @ 2'-0" OC 2"x1/2" STAINLESS STEEL BAR BENT & WELDED TO FORM COUNTER SUPPORT. ANCHOR SECURELY TO BACKING - SPACE @ 4'-0" OC MAX 2X8 BLOCKING @ EACH SUPPORT 2'-10"
