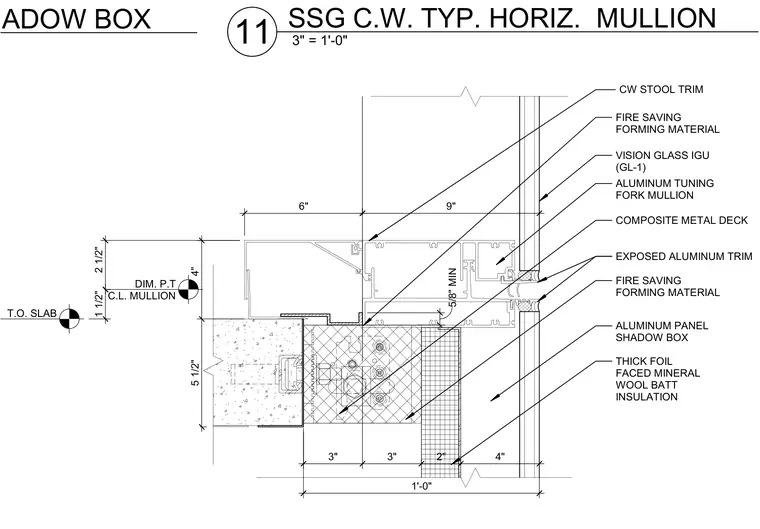

An aluminum tuning fork mullion integrates with a vision glass insulated glazing unit and an aluminum panel shadow box at the slab edge. A composite metal deck supports the floor assembly, framed with fire-saving forming material and thick foil-faced mineral wool batt insulation. Exposed aluminum trim finishes the exterior joint, while a curtain wall stool trim caps the interior condition. Dimensions establish clearances from the top of the slab to the mullion centerline.
VISION GLASS IGU (GL-1) 9" ALUMINUM TUNING FORK MULLION COMPOSITE METAL DECK FIRE SAVING FORMING MATERIAL ALUMINUM PANEL SHADOW BOX THICK FOIL FACED MINERAL WOOL BATT INSULATION CW STOOL TRIM FIRE SAVING FORMING MATERIAL 1'-0" 3" 3" 2" 4" 4" 5 1/2" 5/8" MIN EXPOSED ALUMINUM TRIM 6" T.O. SLAB DIM. P.T C.L. MULLION 1 1/2" 2 1/2" SSG C.W. TYP.HORIZ. TUNING FORK MULLIO TO SHADOW BOX 3" = 1'-0" 11 SSG C.W. TYP. HORIZ. MULLION
