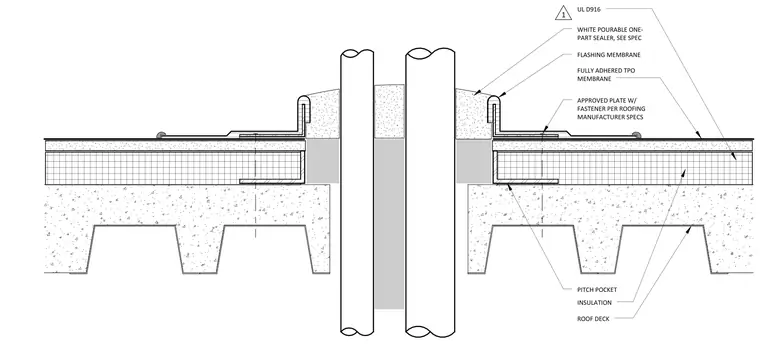

A roof pitch pocket penetration assembly utilizes a fully adhered TPO membrane over insulation and a steel roof deck conforming to UL D916. The penetration passes through the roof deck and is surrounded by a prefabricated pitch pocket filled with a white pourable one-part sealer. A flashing membrane extends up the vertical surface of the penetration and terminates under an approved plate secured with fasteners per the roofing manufacturer specifications.
WHITE POURABLE ONE‐ PART SEALER, SEE SPEC FLASHING MEMBRANE APPROVED PLATE W/ FASTENER PER ROOFING MANUFACTURER SPECS FULLY ADHERED TPO MEMBRANE PITCH POCKET INSULATION ROOF DECK UL D916 1
