Required pull side maneuvering clearance provides eighteen inches minimum on the latch side when the recess depth exceeds eight inches, with sixty inches minimum depth perpendicular to the doorway. Required push side maneuvering clearance provides forty-eight inches minimum depth when the recess depth exceeds eight inches. Push side clearance for doors with both closer and latch provides forty-eight inches minimum depth with twelve inches minimum on the latch side when the recess depth exceeds eight inches.

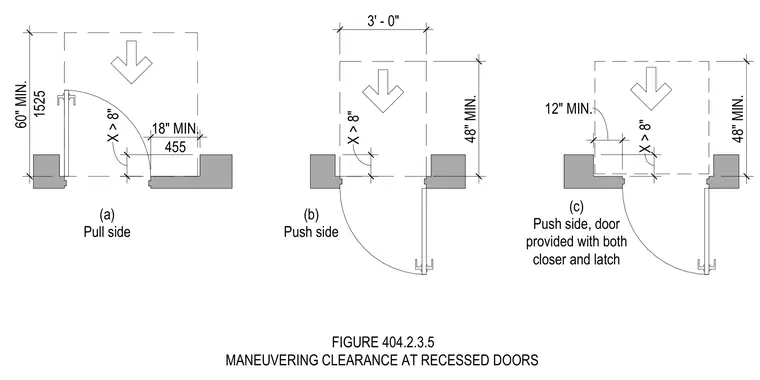

FIGURE 404.2.3.5 MANEUVERING CLEARANCE AT RECESSED DOORS (a) Pull side 455 18" MIN. 1525 60" MIN. X > 8" (b) Push side (c) Push side, door provided with both closer and latch 12" MIN. X > 8" 48" MIN. X > 8" 3' - 0" 48" MIN.
