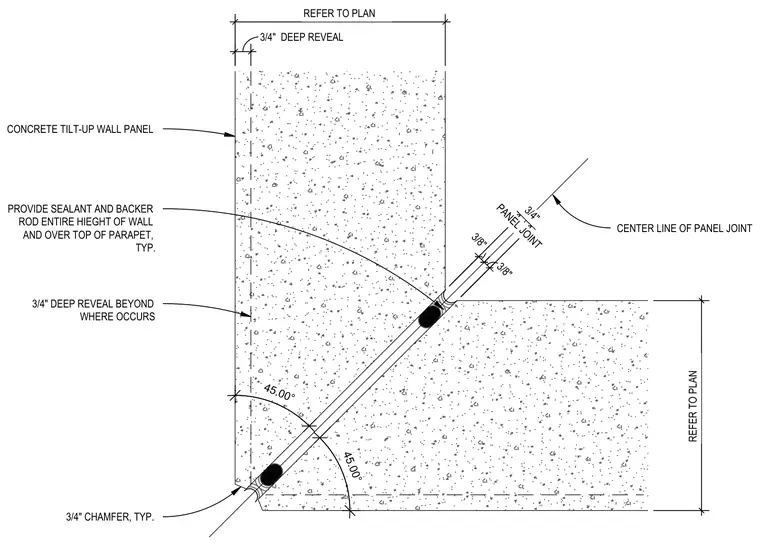

Concrete tilt-up wall panels meet at a forty-five-degree outside corner with a centered panel joint. A backer rod and sealant run the entire height of the wall and over the top of the parapet. A three-quarter-inch deep reveal is provided beyond where occurs, alongside typical three-quarter-inch chamfers at the exterior corner.
CENTER LINE OF PANEL JOINT CONCRETE TILT-UP WALL PANEL 3/4" DEEP REVEAL BEYOND WHERE OCCURS PROVIDE SEALANT AND BACKER ROD ENTIRE HIEGHT OF WALL AND OVER TOP OF PARAPET, TYP. 3/4" CHAMFER, TYP. 3/4" DEEP REVEAL REFER TO PLAN REFER TO PLAN 3/8" 3/8" 45.00° 45.00° PANEL JOINT 3/4"
