Architectural · A-KR9CN

Curtainwall Jamb at Steel Tube Column and Brick Masonry

Materials

Steel Timber / Wood Masonry / CMU Brick Glass / Glazing Aluminum Gypsum / Drywall

Elements

Columns Walls Curtain Walls Waterproofing / Flashing Entrances

Connections

HSS Connection

About this detail

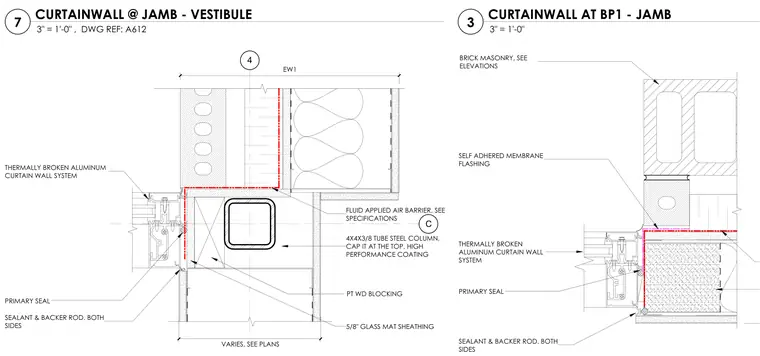

A jamb condition of a thermally broken aluminum curtain wall system intersects a brick masonry wall backed by a 4x4x3/8 tube steel column. The steel column is finished with a high-performance coating, capped at the top, and flanked by pressure-treated wood blocking. The assembly incorporates 5/8-inch glass mat sheathing, a fluid-applied air barrier per specifications, and a self-adhered membrane flashing behind the brick masonry. The joint between the aluminum curtain wall and adjacent construction is sealed with a primary seal, and finished with sealant and backer rod on both sides.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
