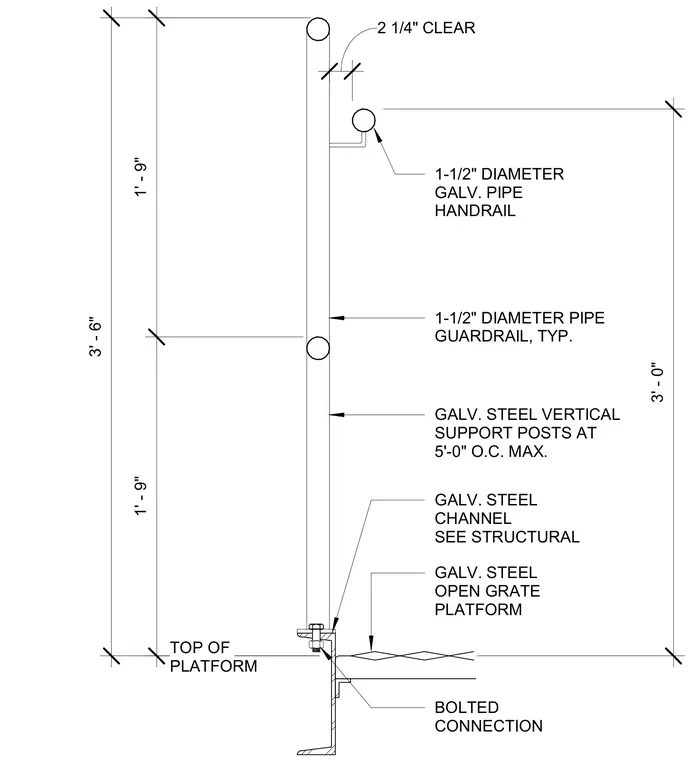

Galvanized steel vertical support posts anchor to a galvanized steel channel at the top of the platform with a bolted connection. A galvanized steel open grate platform rests against the channel. One-and-a-half-inch diameter galvanized pipe guardrails span between vertical support posts spaced at five feet on center maximum. A separate one-and-a-half-inch diameter galvanized pipe handrail is mounted to the guardrail post assembly with a two-and-a-quarter-inch clear offset.
2 1/4" CLEAR 1' - 9" 1' - 9" 3' - 6" 3' - 0" 1-1/2" DIAMETER PIPE GUARDRAIL, TYP. TOP OF PLATFORM BOLTED CONNECTION GALV. STEEL VERTICAL SUPPORT POSTS AT 5'-0" O.C. MAX. 1-1/2" DIAMETER GALV. PIPE HANDRAIL GALV. STEEL CHANNEL SEE STRUCTURAL GALV. STEEL OPEN GRATE PLATFORM
