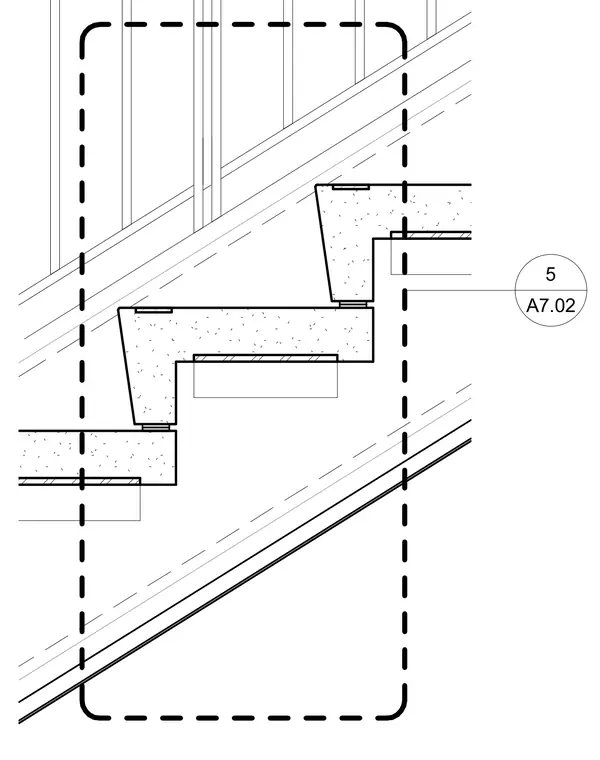

Precast concrete stair treads and risers are arranged in a continuous run supported by a structural stringer beneath. Vertical guardrail posts anchor directly into the precast assembly along the stair slope. A matching handrail runs parallel to the stair pitch above the guard assembly.
