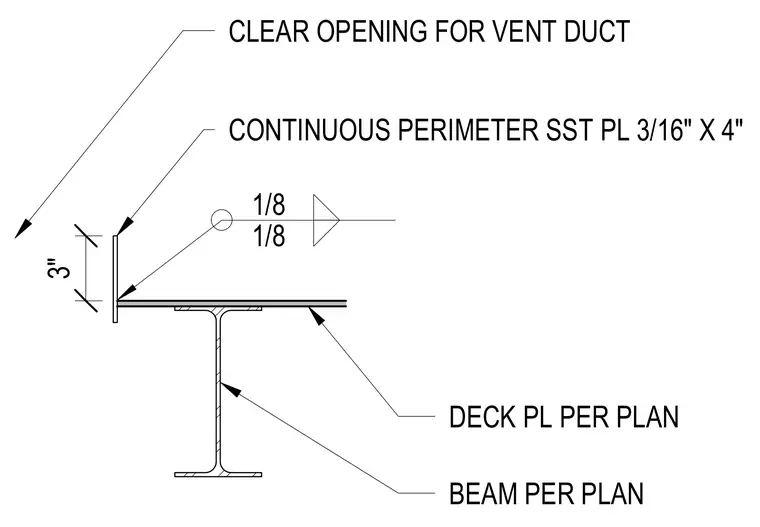

A continuous perimeter stainless steel plate measuring three-sixteenths of an inch by four inches frames a clear opening for a vent duct. The plate is welded to a deck plate with an eighth-inch fillet weld, supported by a structural steel beam sized per plan.
CONTINUOUS PERIMETER SST PL 3/16" X 4" 1/8 1/8 DECK PL PER PLAN CLEAR OPENING FOR VENT DUCT BEAM PER PLAN 3"
