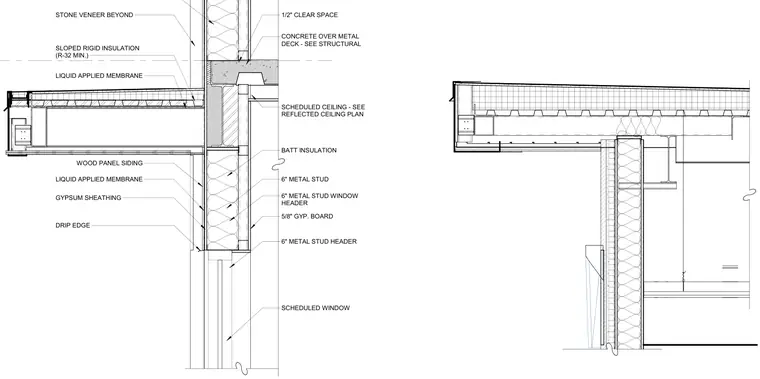

This wall section details the structural and architectural junction at a canopy, featuring six-inch metal studs with batt insulation and gypsum sheathing, faced with wood panel siding and stone veneer beyond. A liquid applied membrane provides waterproofing beneath sloped rigid insulation at the roof canopy assembly. The interior finish consists of five-eighths inch gypsum board and a scheduled ceiling meeting a scheduled window head with a drip edge.
5/8" GYP. BOARD 6" METAL STUD BATT INSULATION 6" METAL STUD HEADER SCHEDULED WINDOW GYPSUM SHEATHING LIQUID APPLIED MEMBRANE CONCRETE OVER METAL DECK - SEE STRUCTURAL SCHEDULED CEILING - SEE REFLECTED CEILING PLAN 1/2" CLEAR SPACE WOOD PANEL SIDING STONE VENEER BEYOND 6" METAL STUD WINDOW HEADER DRIP EDGE SLOPED RIGID INSULATION (R-32 MIN.) LIQUID APPLIED MEMBRANE
