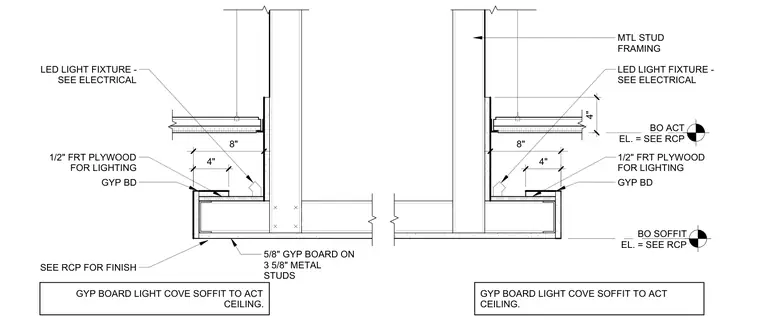

Metal stud framing supports a dropped soffit faced with five-eighths-inch gypsum board and one-half-inch fire-retardant-treated plywood at the light trough. An eight-inch LED light fixture is integrated into the four-inch light cove pocket, transitioning to an acoustical ceiling tile system. Bottom of soffit and bottom of acoustical ceiling elevations are coordinated per the reflected ceiling plan.
BO SOFFIT EL. = SEE RCP BO ACT EL. = SEE RCP MTL STUD FRAMING GYP BD 1/2" FRT PLYWOOD FOR LIGHTING 8" LED LIGHT FIXTURE - SEE ELECTRICAL 4" GYP BOARD LIGHT COVE SOFFIT TO ACT CEILING. 4" GYP BD 1/2" FRT PLYWOOD FOR LIGHTING SEE RCP FOR FINISH 8" LED LIGHT FIXTURE - SEE ELECTRICAL 4" GYP BOARD LIGHT COVE SOFFIT TO ACT CEILING. 5/8" GYP BOARD ON 3 5/8" METAL STUDS
