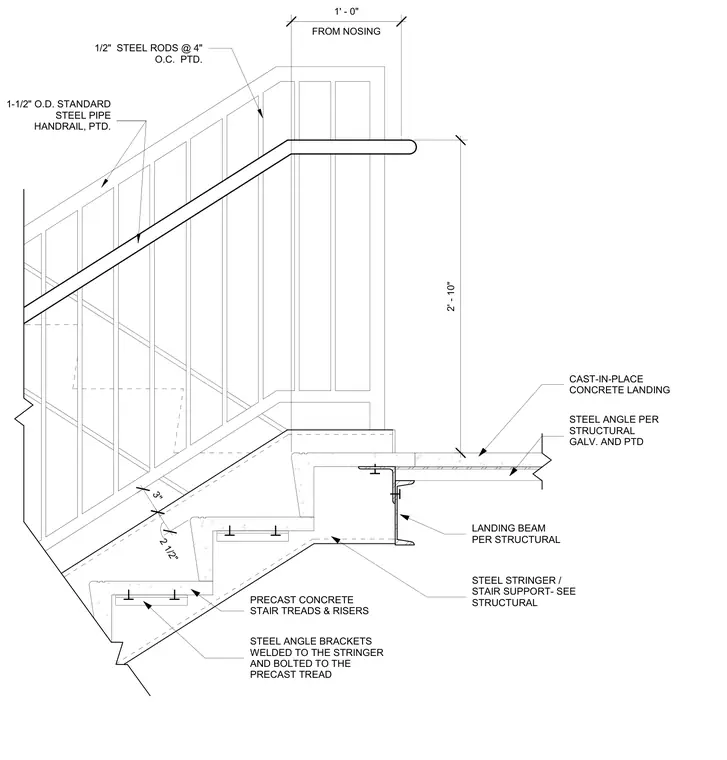

Precast concrete stair treads and risers bear on a steel stringer and stair support sized per structural drawings. Steel angle brackets are welded to the stringer and bolted to the precast treads. A cast-in-place concrete landing meets the stair run at a landing beam supported by a galvanized and painted steel angle per structural requirements. A handrail featuring a one and one-half inch outer diameter standard painted steel pipe and half-inch vertical steel rods spaced at four inches on center is secured above.
FROM NOSING 1' - 0" 2' - 10" STEEL STRINGER / STAIR SUPPORT- SEE STRUCTURAL LANDING BEAM PER STRUCTURAL STEEL ANGLE BRACKETS WELDED TO THE STRINGER AND BOLTED TO THE PRECAST TREAD PRECAST CONCRETE STAIR TREADS & RISERS 2 1/2" 3" STEEL ANGLE PER STRUCTURAL GALV. AND PTD CAST-IN-PLACE CONCRETE LANDING 1-1/2" O.D. STANDARD STEEL PIPE HANDRAIL, PTD. 1/2" STEEL RODS @ 4" O.C. PTD.
