A fourteen-gauge stainless steel top and an eighteen-gauge stainless steel body comprise the stainless steel sink work counter. The sixteen-gauge stainless steel bottom shelf is held back four inches to allow for the drain line run to the floor sink, and incorporates a twelve by twelve inch removable access panel with finger holes. The unit is supported on stainless steel legs with adjustable bullet feet and includes a stainless steel hinged door with a continuous pull. A rotary drain handle support operates the drain with a size as specified, and the undershelf is coordinated with the actual floor sink location.

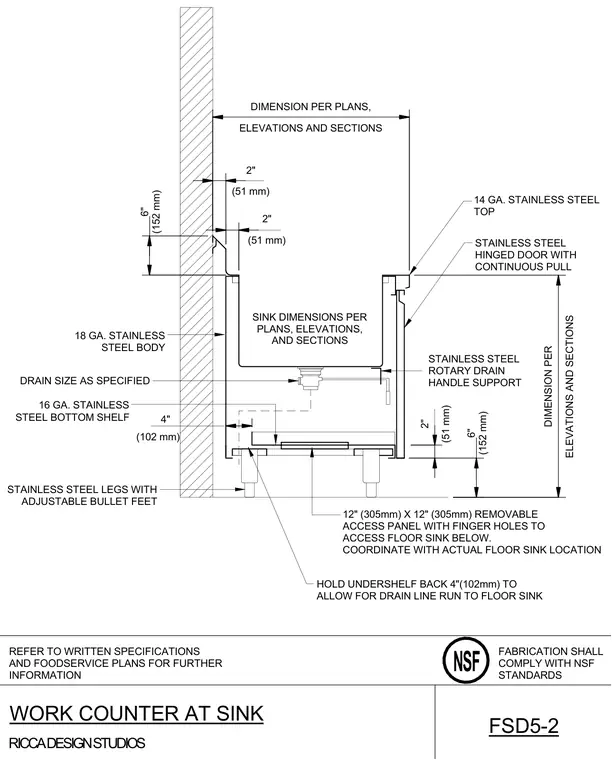

REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF DRAIN SIZE AS SPECIFIED 16 GA. STAINLESS STEEL BOTTOM SHELF 12" (305mm) X 12" (305mm) REMOVABLE ACCESS PANEL WITH FINGER HOLES TO ACCESS FLOOR SINK BELOW. COORDINATE WITH ACTUAL FLOOR SINK LOCATION STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET STAINLESS STEEL ROTARY DRAIN HANDLE SUPPORT 14 GA. STAINLESS STEEL TOP HOLD UNDERSHELF BACK 4"(102mm) TO ALLOW FOR DRAIN LINE RUN TO FLOOR SINK 18 GA. STAINLESS STEEL BODY STAINLESS STEEL HINGED DOOR WITH CONTINUOUS PULL SINK DIMENSIONS PER PLANS, ELEVATIONS, AND SECTIONS ELEVATIONS AND SECTIONS DIMENSION PER PLANS, (102 mm) 4" (152 mm) 6" (51 mm) 2" ELEVATIONS AND SECTIONS DIMENSION PER (51 mm) 2" (152 mm) 6" (51 mm) 2" WORK COUNTER AT SINK FSD5-2
