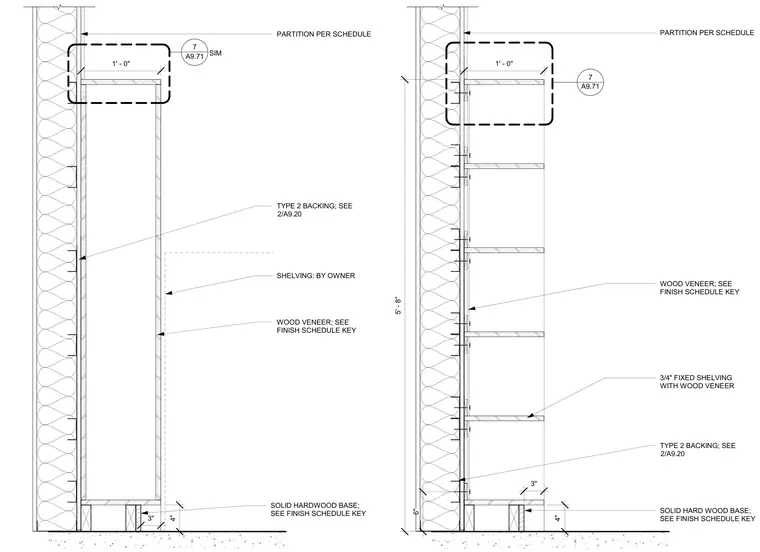

Interior architectural detail for built-in library shelving mounted against a partition wall per schedule. The assembly features three-quarter-inch fixed shelving with wood veneer, a solid hardwood base, and Type 2 backing per structural notes. Wood veneer finishes are coordinated with the finish schedule key, and shelving units are configured with distinct layout options including owner-provided components.
PARTITION PER SCHEDULE 6" 3/4" FIXED SHELVING WITH WOOD VENEER SOLID HARD WOOD BASE; SEE FINISH SCHEDULE KEY WOOD VENEER; SEE FINISH SCHEDULE KEY 1' - 0" 3" __________ A9.71 7 5' - 8" TYPE 2 BACKING; SEE 2/A9.20 4" PARTITION PER SCHEDULE TYPE 2 BACKING; SEE SOLID HARDWOOD BASE; SEE FINISH SCHEDULE KEY 1' - 0" 3" WOOD VENEER; SEE FINISH SCHEDULE KEY 4" SHELVING; BY OWNER 2/A9.20 __________ A9.71 7 SIM
