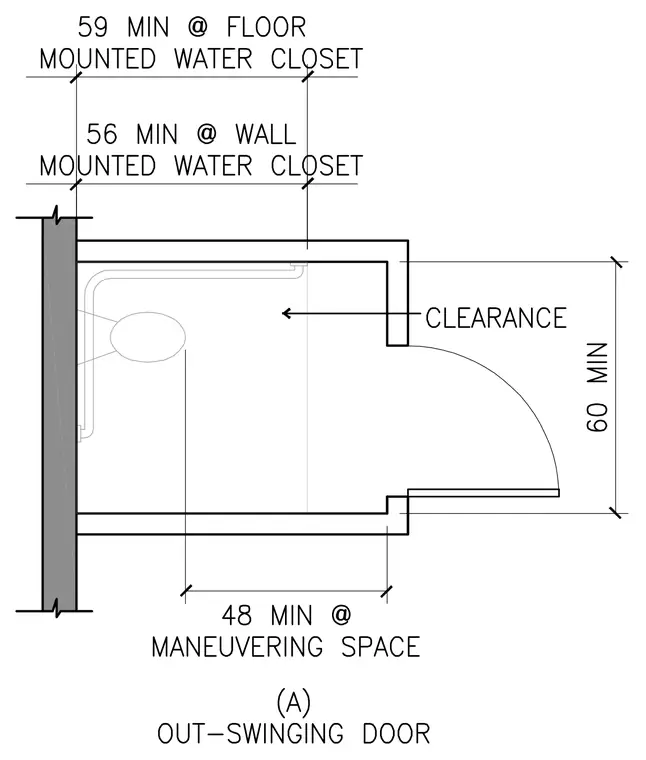

An accessible water closet compartment plan details minimum spatial requirements for both wall-mounted and floor-mounted plumbing fixtures. The layout establishes a forty-eight-inch minimum maneuvering space dimension measured from the fixture. A sixty-inch minimum clear width applies to the compartment. Depth dimensions require fifty-six inches minimum for wall-mounted water closets and fifty-nine inches minimum for floor-mounted water closets. An out-swinging door swings outward from the compartment to maintain required interior clearances.
