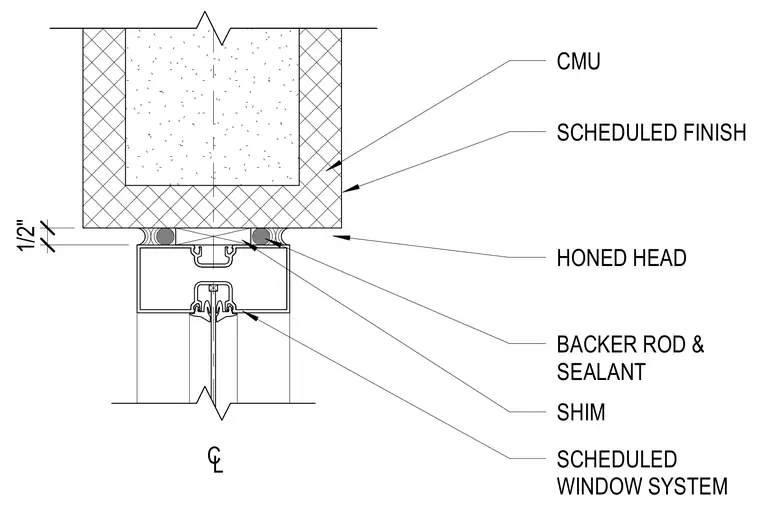

An interior window head abuts a concrete masonry unit wall with a one-half inch shim space. A scheduled window system connects to the honed head of the masonry wall. The joint is sealed with backer rod and sealant along both edges. The masonry features a scheduled interior finish.
CMU BACKER ROD & SEALANT SCHEDULED WINDOW SYSTEM SCHEDULED FINISH HONED HEAD CL 1/2" SHIM
