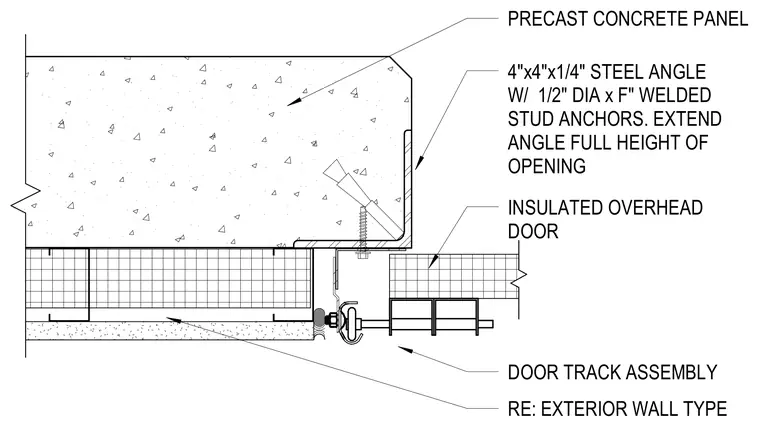

An insulated overhead sectional door tracks alongside a precast concrete wall panel. A four-inch by four-inch by one-quarter-inch steel angle with one-half-inch diameter welded stud anchors embeds into the precast concrete panel and extends the full height of the opening. The door track assembly fastens directly to the steel angle.
PRECAST CONCRETE PANEL 4"x4"x1/4" STEEL ANGLE W/ 1/2" DIA x F" WELDED STUD ANCHORS. EXTEND ANGLE FULL HEIGHT OF OPENING INSULATED OVERHEAD DOOR DOOR TRACK ASSEMBLY RE: EXTERIOR WALL TYPE
