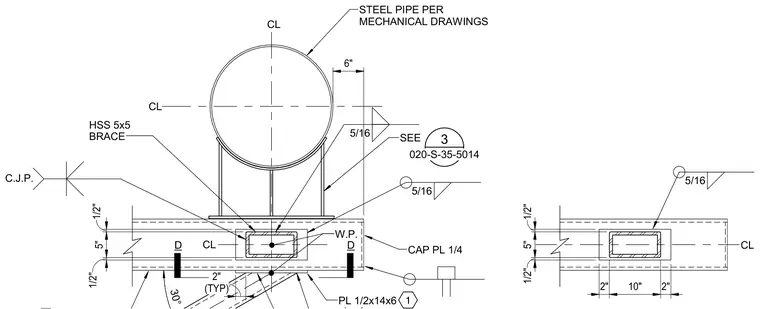

A steel pipe per mechanical drawings is supported on an HSS 5x5 brace member. A one-quarter inch cap plate closes the end of the hollow structural section, secured with five-sixteenths inch fillet welds. A half-inch by fourteen by six inch plate connects the angled brace at a thirty degree working point. Complete joint penetration welds and five-sixteenths inch fillet welds join the structural steel elements.
STEEL PIPE PER MECHANICAL DRAWINGS C.J.P. D CAP PL 1/4 CL 1/2" 5" 1/2" HSS 5x5 BRACE 5/16 PL 1/2x14x6 1 W.P. 5/16 30° (TYP) 2" D CL CL CL 2" 10" 2" 1/2" 5" 1/2" 5/16 020-S-35-5014 3 SEE 6"
