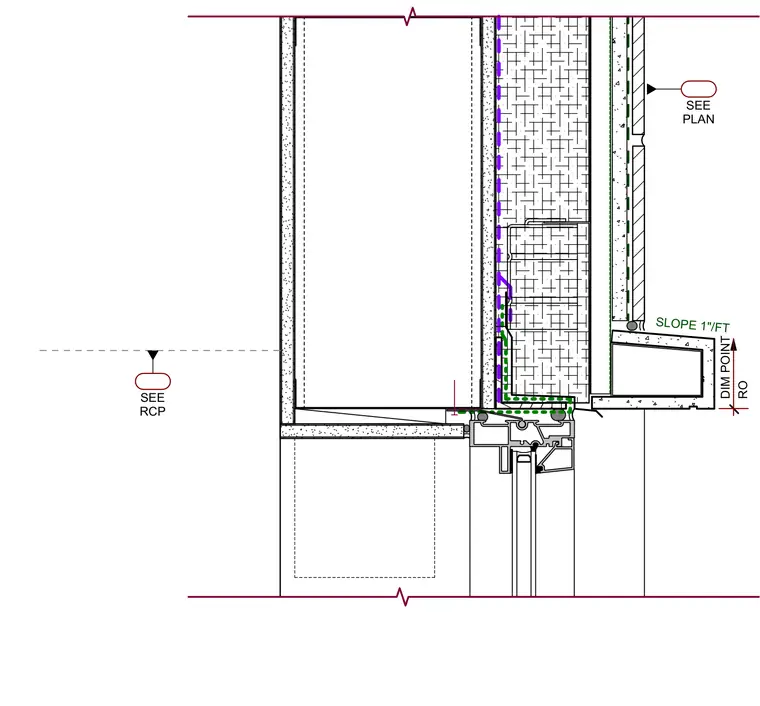

Window head and sill detail showing a framed opening with a sloped exterior sill detailed at one inch per foot. Rough opening dimensions are referenced to plan locations, and interior conditions are coordinated with reflected ceiling plans.
