Architectural · A-KNKHJ

Recessed Toe Kick Standard Casework Detail

Materials

Elements

Doors Floors / Slabs Millwork / Casework Anchors / Embeds

About this detail

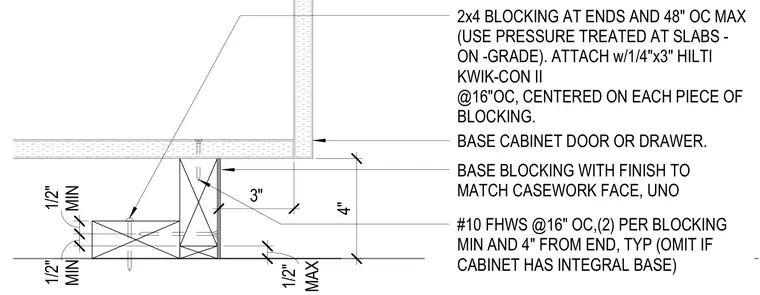

A standard four-inch recessed toe kick assembly is anchored to the floor and wall. Two-by-four wood blocking is positioned at ends and spaced at forty-eight inches on center maximum, with pressure-treated lumber required at slabs-on-grade. The blocking is secured using one-quarter by three-inch Hilti Kwik-Con II concrete anchors spaced at sixteen inches on center. A base blocking piece with a finish matching the casework face is attached using number ten flat head wood screws at sixteen inches on center, with two screws minimum per blocking piece and four inches from each end. The cabinet door or drawer sits above the recessed toe assembly, maintaining specified vertical clearances of one-half inch minimum and a three-inch recess depth.
