Sink Cabinet with ADA Closure Panel

Elements

About this detail

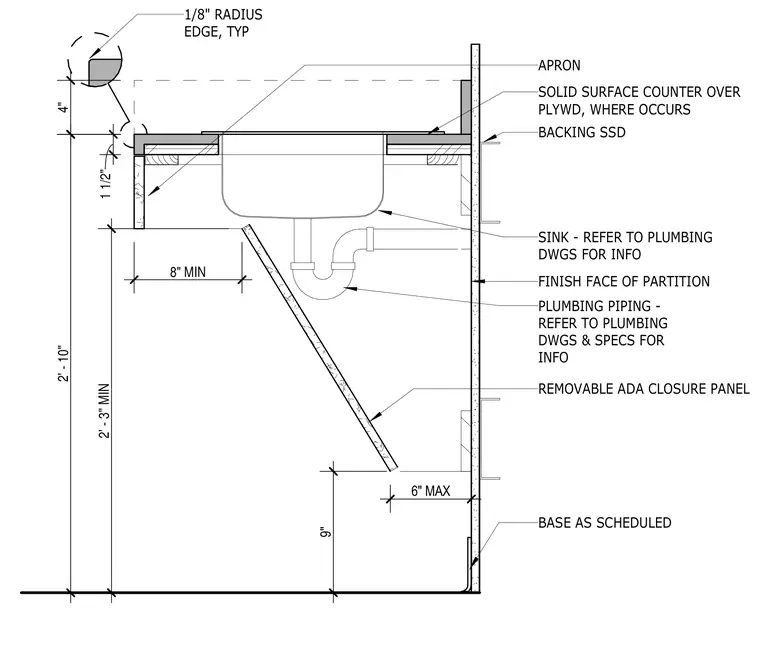

An ADA compliant sink cabinet features a solid surface counter mounted over plywood, supported by framing against the finish face of the partition. The assembly includes an apron, a sink with rough-in plumbing piping, and a removable ADA closure panel below for knee clearance. Backing is provided at the partition wall, and a base finish is installed at the floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
