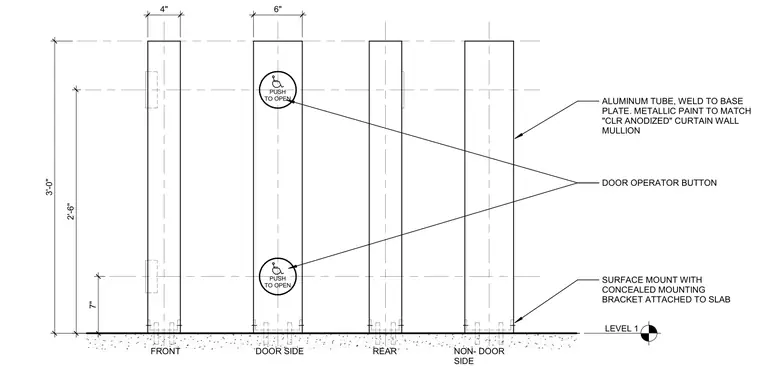

An aluminum tube bollard is welded to a base plate and anchored to the floor slab with a surface-mounted concealed mounting bracket. The bollard receives a metallic paint finish matching the clear anodized curtain wall mullions. Automatic door operator push buttons are surface mounted on the bollard at specified heights above Level 1.
6" 4" FRONT DOOR SIDE REAR NON- DOOR SIDE ALUMINUM TUBE, WELD TO BASE PLATE. METALLIC PAINT TO MATCH "CLR ANODIZED" CURTAIN WALL MULLION DOOR OPERATOR BUTTON PUSH TO OPEN PUSH TO OPEN LEVEL 1 7" 2'-6" 3'-0" SURFACE MOUNT WITH CONCEALED MOUNTING BRACKET ATTACHED TO SLAB
