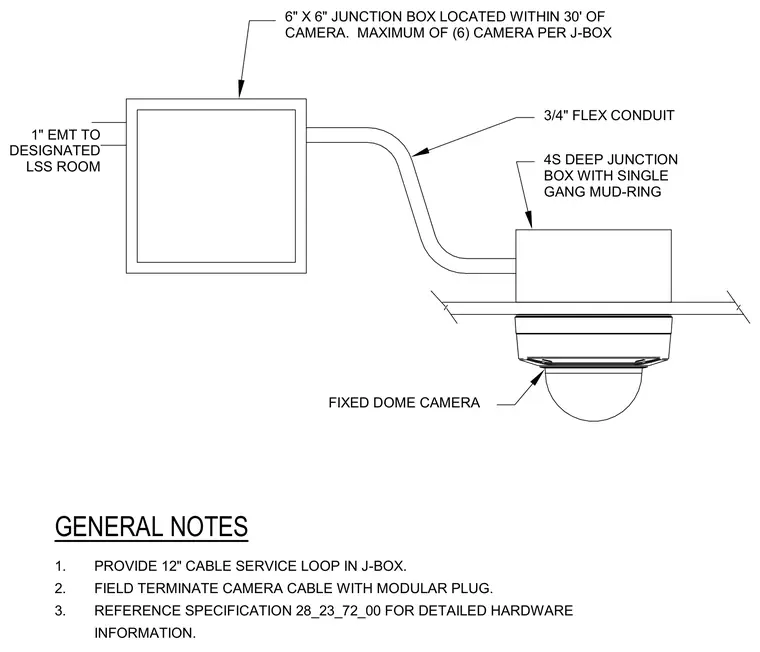

An interior fixed dome camera mounts to a four-square deep junction box equipped with a single gang mud-ring. A three-quarter-inch flexible conduit connects the camera box to a six-by-six-inch junction box located within thirty feet, which accommodates a maximum of six cameras. One-inch electrical metallic tubing routes from the larger junction box to the designated low-voltage security system room. A twelve-inch cable service loop is provided inside the junction box, and the camera cable is field-terminated with a modular plug.
1" EMT TO DESIGNATED LSS ROOM 1. PROVIDE 12" CABLE SERVICE LOOP IN J-BOX. 2. FIELD TERMINATE CAMERA CABLE WITH MODULAR PLUG. 3. REFERENCE SPECIFICATION 28_23_72_00 FOR DETAILED HARDWARE INFORMATION. GENERAL NOTES 3/4" FLEX CONDUIT 6" X 6" JUNCTION BOX LOCATED WITHIN 30' OF CAMERA. MAXIMUM OF (6) CAMERA PER J-BOX FIXED DOME CAMERA 4S DEEP JUNCTION BOX WITH SINGLE GANG MUD-RING
