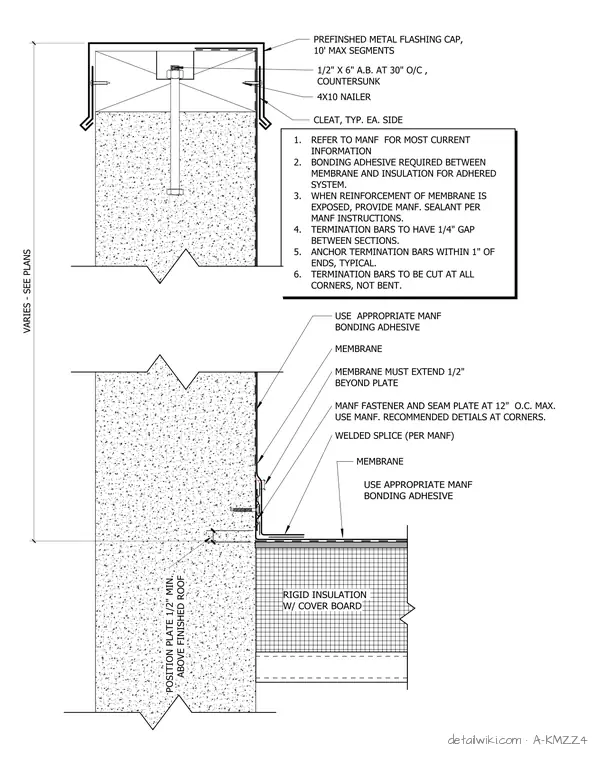

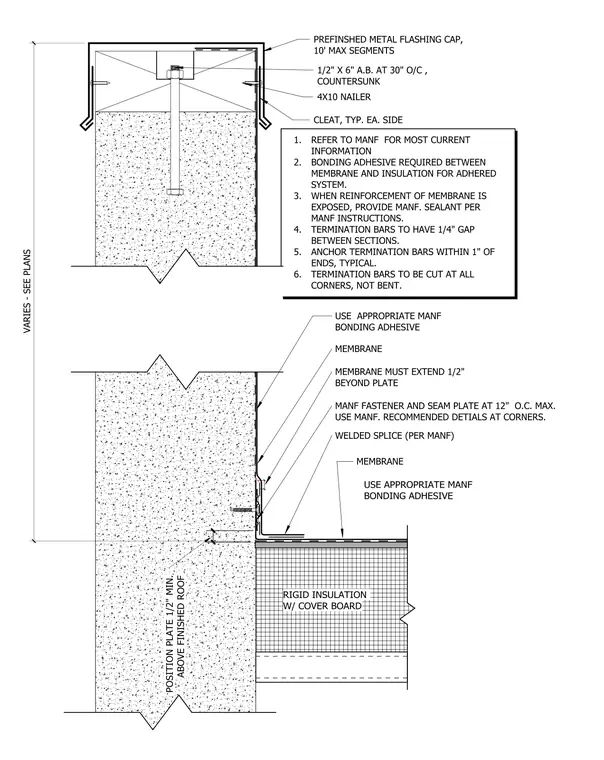

A prefinished metal flashing cap secures over a four-by-ten wood nailer at the parapet wall. The nailer anchors to the parapet with one-half-inch diameter by six-inch long anchor bolts spaced at thirty inches on center, countersunk to accommodate the cap. Metal cleats install on each side of the nailer to secure the flashing. The roofing membrane adheres to the rigid insulation and cover board using manufacturer-recommended bonding adhesive, extending one-half inch beyond the termination plate. A manufacturer-specified fastener and seam plate install at a maximum of twelve inches on center, with termination bars cut at all corners and spaced with a one-quarter-inch gap between sections.
Text on the drawing
WELDED SPLICE (PER MANF) MEMBRANE MEMBRANE MUST EXTEND 1/2" BEYOND PLATE MEMBRANE 1. 2. 3. 4. 5. 6. REFER TO MANF FOR MOST CURRENT INFORMATION BONDING ADHESIVE REQUIRED BETWEEN MEMBRANE AND INSULATION FOR ADHERED SYSTEM. WHEN REINFORCEMENT OF MEMBRANE IS EXPOSED, PROVIDE MANF. SEALANT PER MANF INSTRUCTIONS. TERMINATION BARS TO HAVE 1/4" GAP BETWEEN SECTIONS. ANCHOR TERMINATION BARS WITHIN 1" OF ENDS, TYPICAL. TERMINATION BARS TO BE CUT AT ALL CORNERS, NOT BENT. MANF FASTENER AND SEAM PLATE AT 12" O.C. MAX. USE MANF. RECOMMENDED DETIALS AT CORNERS. USE APPROPRIATE MANF BONDING ADHESIVE USE APPROPRIATE MANF BONDING ADHESIVE . 4X10 NAILER 1/2" X 6" A.B. AT 30" O/C , COUNTERSUNK CLEAT, TYP. EA. SIDE PREFINSHED METAL FLASHING CAP, 10' MAX SEGMENTS VARIES - SEE PLANS
