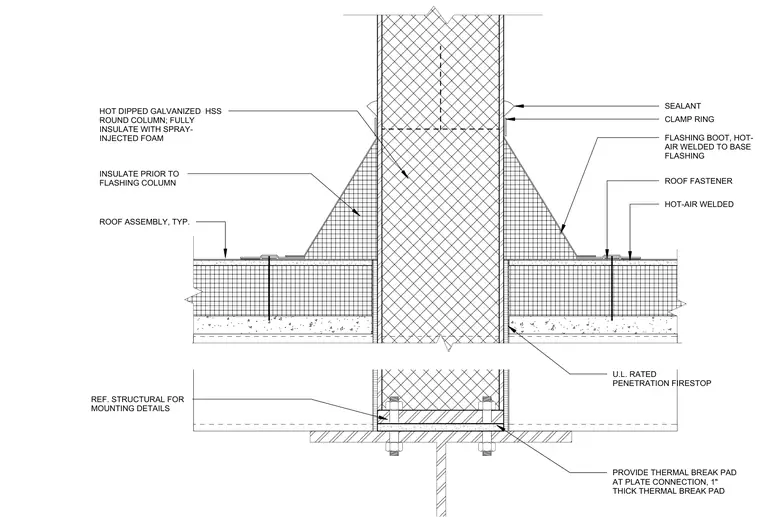

A hot-dipped galvanized hollow structural section round column penetrates the roof assembly, fully insulated with spray-injected foam. A one-inch thick thermal break pad is installed at the lower plate connection to minimize thermal bridging, secured with threaded fasteners referenced to structural drawings. A flashing boot is hot-air welded to the base flashing around the column, with a clamp ring and sealant applied at the top. The roof assembly includes mechanical roof fasteners and an Underwriters Laboratories rated penetration firestop at the deck level.
INSULATE PRIOR TO FLASHING COLUMN HOT DIPPED GALVANIZED HSS ROUND COLUMN; FULLY INSULATE WITH SPRAY- INJECTED FOAM ROOF ASSEMBLY, TYP. REF. STRUCTURAL FOR MOUNTING DETAILS FLASHING BOOT, HOT- AIR WELDED TO BASE FLASHING ROOF FASTENER U.L. RATED PENETRATION FIRESTOP SEALANT CLAMP RING HOT-AIR WELDED PROVIDE THERMAL BREAK PAD AT PLATE CONNECTION, 1" THICK THERMAL BREAK PAD
