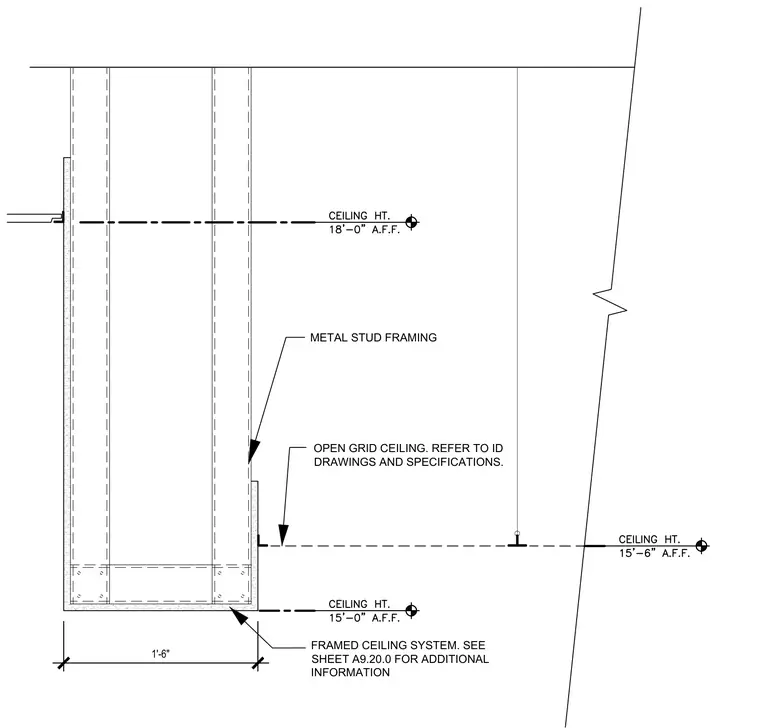

An eighteen-foot-zero-inch above finished floor ceiling height aligns with the main bulkhead structure, while a lower open grid ceiling system sits at fifteen feet six inches above finished floor. Cold-formed metal stud framing forms the one-foot-six-inch soffit assembly. Additional framing details for the framed ceiling system are coordinated per sheet A9.20.0, and open grid ceiling components coordinate with interior design drawings and specifications.
1'-6" METAL STUD FRAMING FRAMED CEILING SYSTEM. SEE SHEET A9.20.0 FOR ADDITIONAL INFORMATION OPEN GRID CEILING. REFER TO ID DRAWINGS AND SPECIFICATIONS.
