An EPDM roofing membrane terminates at the exterior wall junction using a two-inch cant strip and bonding adhesive, secured with a termination bar and continuous bead of sealant. Fasteners are spaced at twelve inches on center maximum behind a metal Z flashing and weep metal edge. The wall assembly consists of hat channel furring, a vapor retarder, and three-quarters of an inch of lath and plaster with paint finish.

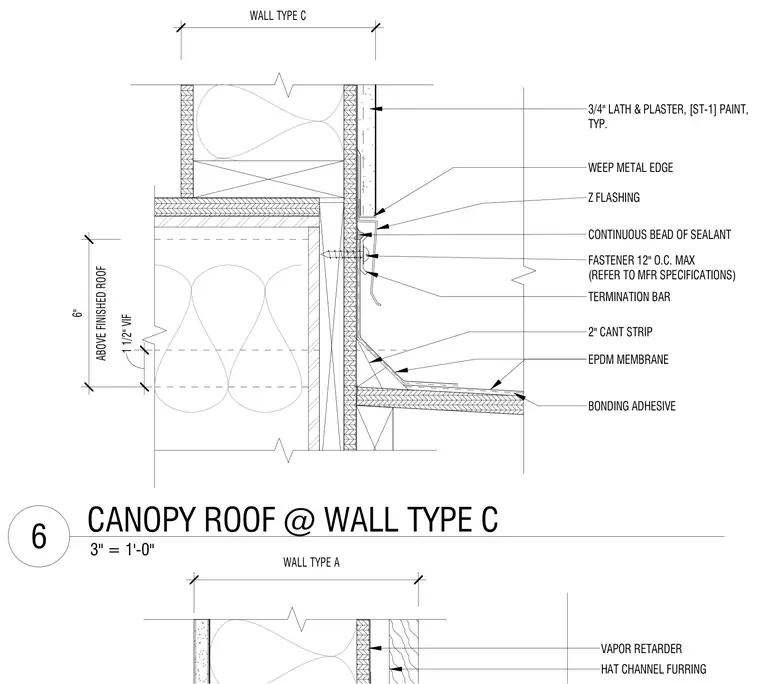

WALL TYPE A HAT CHANNEL FURRING VAPOR RETARDER 3/4" LATH & PLASTER, [ST-1] PAINT, TYP. WALL TYPE C ABOVE FINISHED ROOF 6" FASTENER 12" O.C. MAX (REFER TO MFR SPECIFICATIONS) CONTINUOUS BEAD OF SEALANT EPDM MEMBRANE BONDING ADHESIVE 2" CANT STRIP TERMINATION BAR 1 1/2" VIF WEEP METAL EDGE Z FLASHING 3" = 1'-0" 6 CANOPY ROOF @ WALL TYPE C
