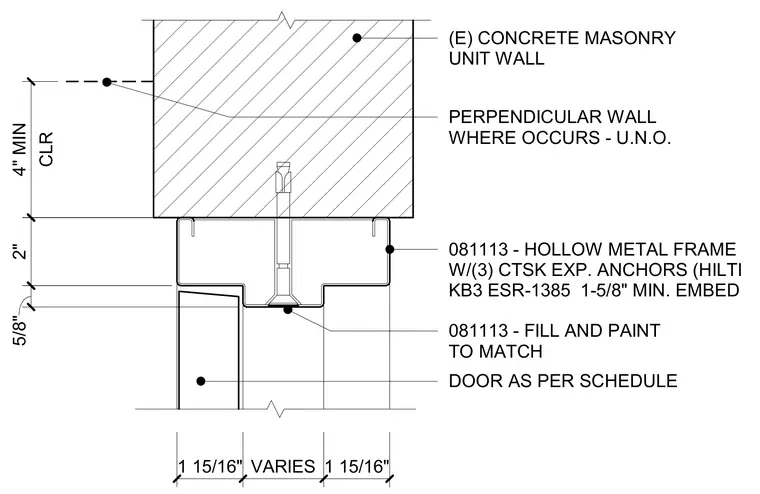

A hollow metal door frame is secured to an existing concrete masonry unit wall using three countersunk expansion anchors with a one and five-eighths inch minimum embedment. The fasteners are installed through the frame and filled and painted to match. A door specified in the door schedule swings within the frame opening.
2" 081113 - HOLLOW METAL FRAME W/(3) CTSK EXP. ANCHORS (HILTI KB3 ESR-1385 1-5/8" MIN. EMBED (E) CONCRETE MASONRY UNIT WALL CLR 4" MIN PERPENDICULAR WALL WHERE OCCURS - U.N.O. DOOR AS PER SCHEDULE 1 15/16" VARIES 1 15/16" 5/8" 081113 - FILL AND PAINT TO MATCH
