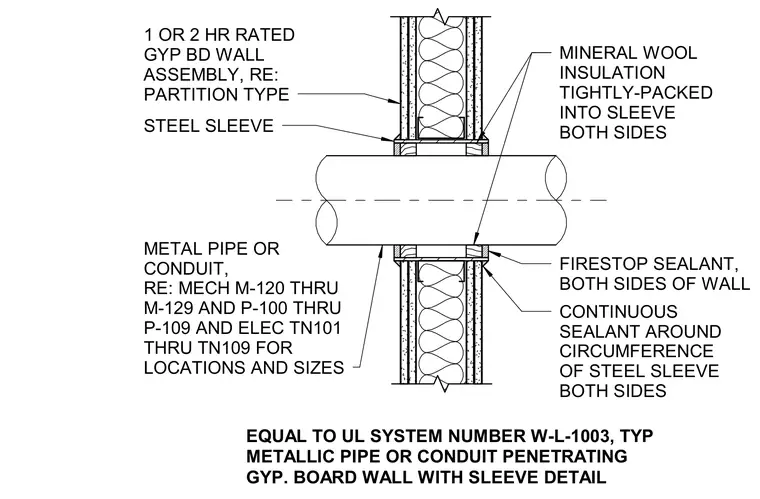

A metallic pipe or conduit passes through a one or two-hour rated gypsum board wall assembly enclosed within a steel sleeve. Tightly-packed mineral wool insulation fills the sleeve on both sides of the wall. Firestop sealant is applied on both sides of the wall, accompanied by a continuous bead of sealant around the full circumference of the steel sleeve.
EQUAL TO UL SYSTEM NUMBER W-L-1003, TYP METALLIC PIPE OR CONDUIT PENETRATING GYP. BOARD WALL WITH SLEEVE DETAIL STEEL SLEEVE METAL PIPE OR CONDUIT, RE: MECH M-120 THRU M-129 AND P-100 THRU P-109 AND ELEC TN101 THRU TN109 FOR LOCATIONS AND SIZES MINERAL WOOL INSULATION TIGHTLY-PACKED INTO SLEEVE BOTH SIDES 1 OR 2 HR RATED GYP BD WALL ASSEMBLY, RE: PARTITION TYPE FIRESTOP SEALANT, BOTH SIDES OF WALL CONTINUOUS SEALANT AROUND CIRCUMFERENCE OF STEEL SLEEVE BOTH SIDES
