A hollow structural section outrigger measuring six inches by six inches by one-half inch with welded caps extends from column line two to column line six, framing out from a steel column. A six-inch metal channel with horizontal metal studs spaced at two feet on center connects to the outrigger assembly. The structural steel column and outrigger penetration are wrapped with five-eighths-inch gypsum board featuring metal bead trim, fully caulked and sealed. The exterior wall consists of two-inch Kingspan insulated metal panels mounted on one-half-inch hat channels spaced at two feet on center over insulation.

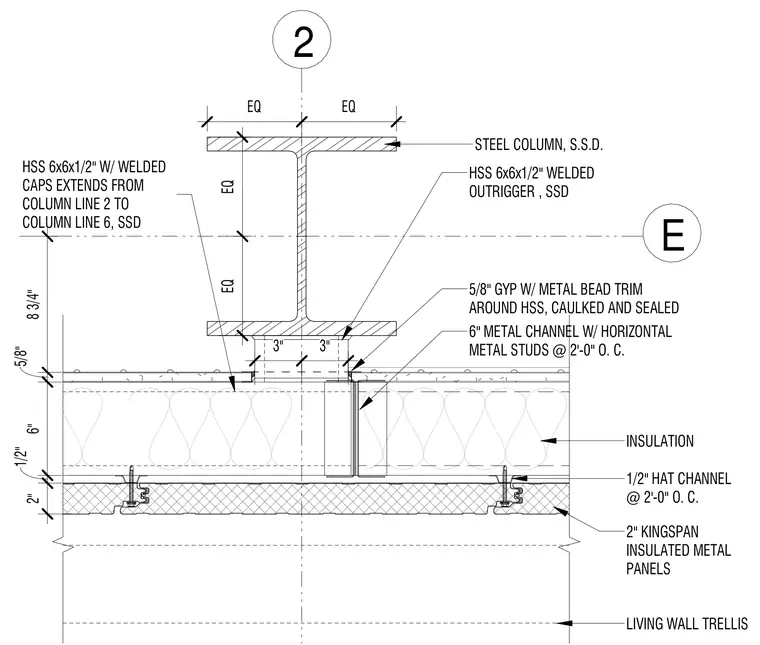

STEEL COLUMN, S.S.D. 1/2" HAT CHANNEL @ 2'-0" O. C. E 2 LIVING WALL TRELLIS HSS 6x6x1/2" W/ WELDED CAPS EXTENDS FROM COLUMN LINE 2 TO COLUMN LINE 6, SSD 2" KINGSPAN INSULATED METAL PANELS INSULATION HSS 6x6x1/2" WELDED OUTRIGGER , SSD 6" METAL CHANNEL W/ HORIZONTAL METAL STUDS @ 2'-0" O. C. 5/8" GYP W/ METAL BEAD TRIM AROUND HSS, CAULKED AND SEALED 3" 3" EQ EQ EQ EQ 8 3/4" 5/8" 6" 1/2" 2"
