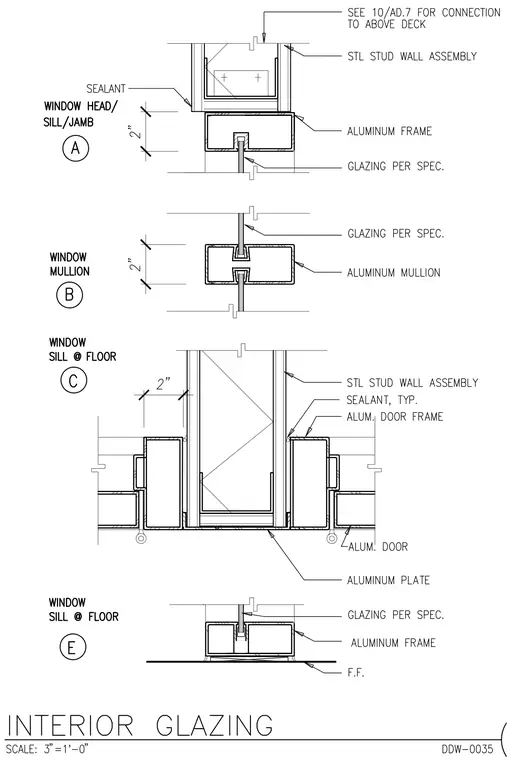

An interior glazing detail assembly featuring aluminum window frames, mullions, and door frames integrated with steel stud wall assemblies. Sealant is applied typically at joints between the framing and wall construction. Glazing is installed per specifications within the aluminum frame channels. An aluminum plate transitions at the floor level near aluminum doors, while finished floor lines indicate the base elevation.
