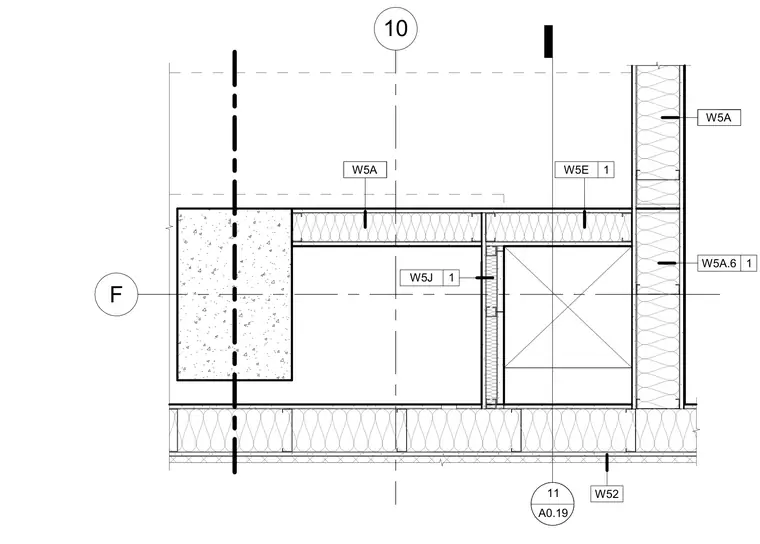

Plan detail showing shaft wall construction with insulated metal stud framing and associated wall assemblies at level 02. The assembly integrates reference tags for wall types and adjacent structural elements.
