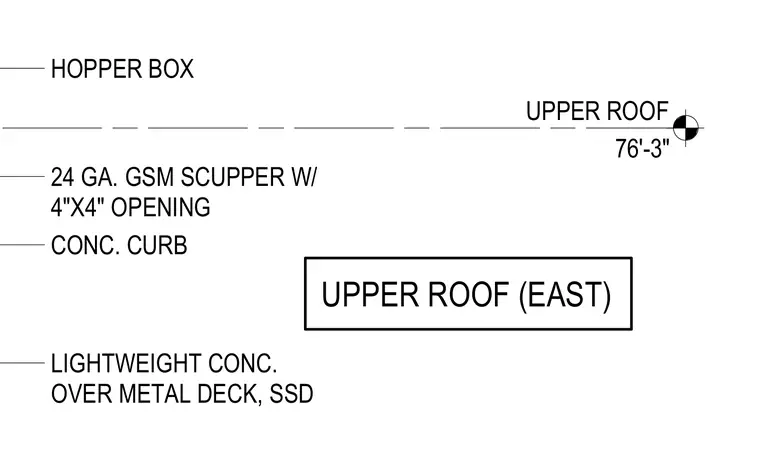

A twenty-four gauge galvanized sheet metal scupper with a four-inch by four-inch opening penetrates a concrete roof curb. The roof assembly consists of lightweight concrete over a metal deck. A stainless steel hopper box collects and directs drainage at the scupper opening.
UPPER ROOF 76'-3" UPPER ROOF (EAST) 24 GA. GSM SCUPPER W/ 4"X4" OPENING CONC. CURB LIGHTWEIGHT CONC. OVER METAL DECK, SSD HOPPER BOX
